Custom 350Z PC Based Stereo

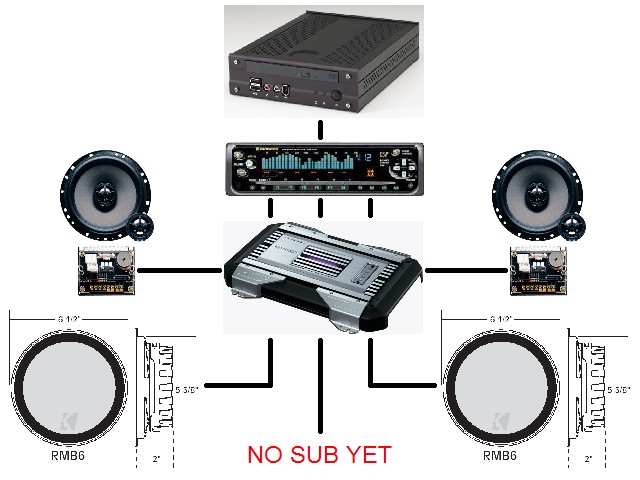

• Head Unit: Travla C-134 ITX PC
• Equalizer/Crossover: Pioneer DEQ-9200
• Amplifier: Kenwood KAC-X650D 5 channel 1200W (Owner's Manual)
  Actually, I don't see how this is 1200W, because it only has a 30A fuse on it (albeit, 2 of them)
  • Front/Rear @ 4Ω: 60W x 4 (160W x 4 Max)
  • Sub/Center @ 4Ω: 200W (300W Max)
• Front Speakers: MB Quart PCE-216 6.5" Coaxial/Component (Owner's Manual)
  • 4Ω
  • 60-130W
  • 38Hz - 2.5kHz, 2.5kHz - 32kHz (Crossover Included)
  • Mounting Template:

• Rear Speakers: Kicker RMB6 6.5" Mid-Bass (Owner's Manual, Technical Manual)
  • 4Ω
  • 125-250W
  • 30Hz - 500Hz
• Subwoofer:
  •

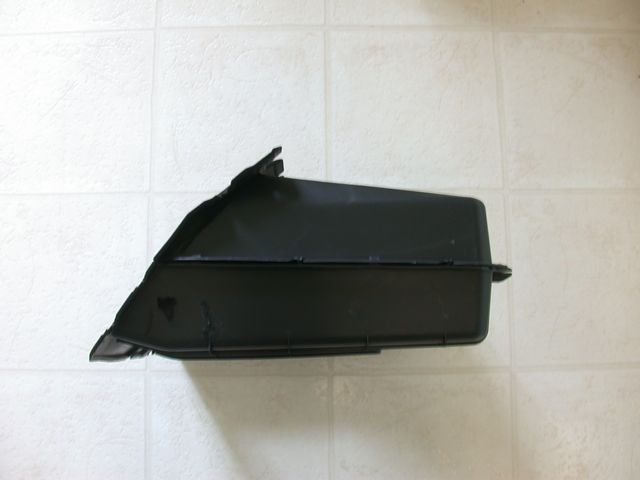

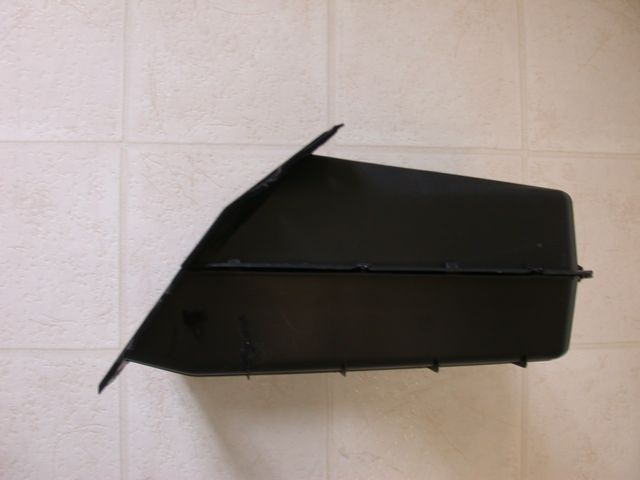

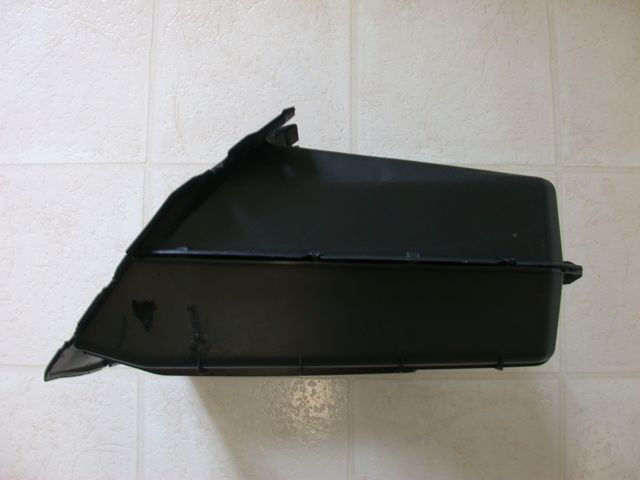

    Profile pictures of the stock glove compartment
  •
    More info...

Links

• http://www.the12volt.com
• http://www.colomar.com/Shavano/crossover6db.html
• http://www.colomar.com/Shavano/inductor_info.html
• http://www.tune-town.com/Cars/stuff/pac/pdf/crossover.pdf
• http://www.speakermax.com/speakerguide.html
  "If you are making your own crossovers, here are a few starting tips:
  Air core coils are best for higher frequencies. Iron core coils are best for lower frequencies. Solid iron core coils are best for low frequencies at high power (over 300 watts). Polypropylene are the best capacitors. Mylar capacitors are next best. Non-polarized electrolytic are the most commonly used."
• http://www.ee.surrey.ac.uk/Workshop/advice/coils/
• http://www.arrl.org/tis/info/pdf/9708033.pdf - Homebrew Your Own Inductors

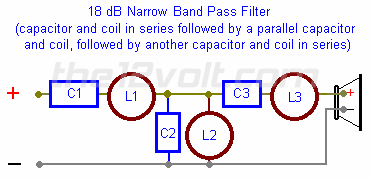

• Custom 3rd Order (Third Order) Narrow Band-Pass Crossover, 30Hz - 500Hz @ 4Ω

  From http://www.the12volt.com
  L1 = 2.01672 mH	C1 = 837.47856 uF
  L2 = 14.84685 mH	C2 = 113.75891 uF
  L3 = 0.67728 mH	C3 = 2493.75929 uF
  From http://www.colomar.com/Shavano/crossover6db.html and http://www.colomar.com/Shavano/inductor_info.html Inductor Wire Gauge DC Resistance Inductor Height Inductor Radius Turns Power Estimated Wire Length + 10 inches L1 18GA 0.041 Inches (1.05mm) 0.74 Ohms 0.66 Inches (16.88 mm) 1.33 Inches (33.76 mm) 144 300W 116.0 feet (35.4 m) L2 2.42 Ohms 1.00 Inches (25.33 mm) 1.99 Inches (50.66 mm) 318 379.1 feet (115.6 m) L3 0.38 Ohms 0.54 Inches (13.65 mm) 1.07 Inches (27.30 mm) 93 59.6 feet (18.2 m) L1 10GA 0.104 Inches (2.64 mm) 0.17 Ohms 1.39 Inches (35.22 mm) 2.77 Inches (70.44 mm) 100 1000W 170.3 feet (51.9 m) L2 0.55 Ohms 2.09 Inches (53.13 mm) 4.18 Inches (106.26 mm) 220 550.7 feet (167.8 m) L3 0.09 Ohms 1.10 Inches (28.05 mm) 2.21 Inches (56.10 mm) 65 90.2 feet (27.5 m) Inductors are either Air or Iron Core (Iron is preferred for Low frequencies) Capacitors are Polypropylene (non-polar?  Solen/Angela Fastcaps?) rated at 100V (200W RMS)
